ST26ED00
E-Switch
Images are for reference only.
See Product Specifications for product details.
Buy ST26ED00 with confidence from Components-Store.com, 1 Year Warranty
See Product Specifications for product details.
Buy ST26ED00 with confidence from Components-Store.com, 1 Year Warranty
Request a Quote
Dowload ST26ED00 Details in PDF| Part Number | ST26ED00 |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TOGGLE DPST-NO 20A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.187 | $2.078 | $2.023 | $1.968 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.913 | $1.804 | $1.531 | $1.449 | ||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | ST26ED00 |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TOGGLE DPST-NO 20A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24143 pcs |

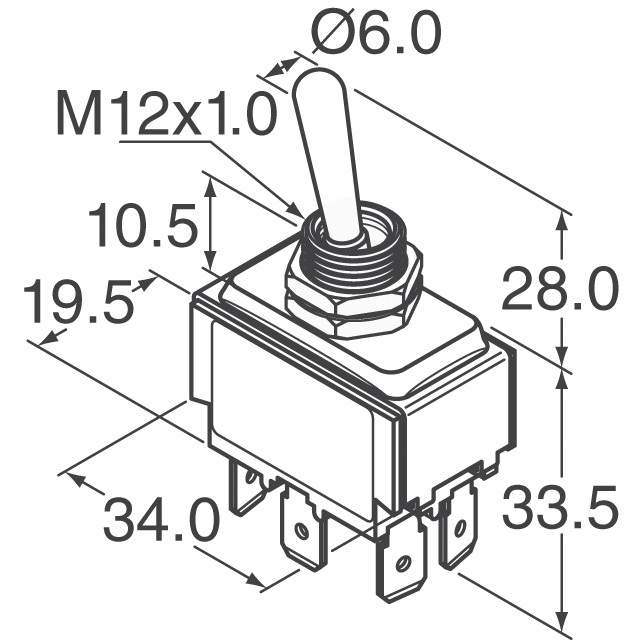

| Data sheet | ST26ED00 DrawingST2 Series Datasheet |

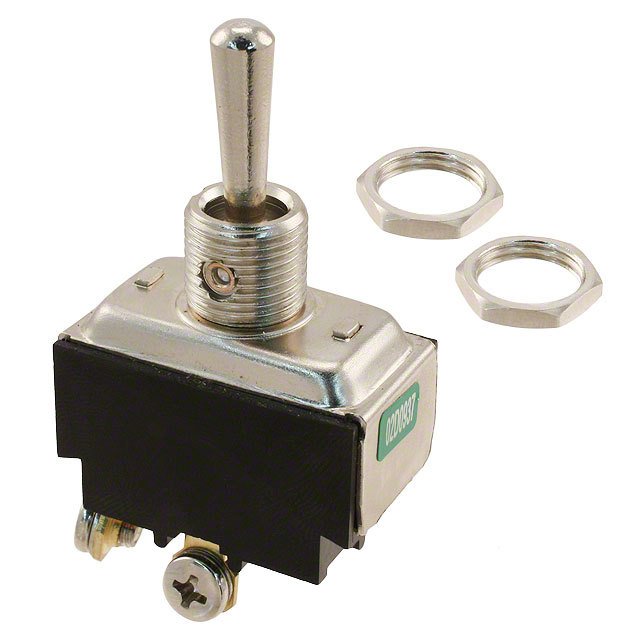

| Product Photo | ST26ED00-001.jpg , ST26ED00-002.jpg |
| Category | Switches |
| Voltage Rating - AC | 125V |
| Termination Style | Screw Terminal |
| Switch Function | Off-Mom |
| Series | ST2, LAMB |
| Panel Cutout Dimensions | Circular - 12.00mm Dia |
| Packaging | Bulk |
| Other Names | 34-ST26ED00 EG4827 |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - |
| Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - |
| Illumination | Non-Illuminated |
| Features | - |
| Electrical Life | 6,000 Cycles |
| Detailed Description | Toggle Switch DPST-NO Panel Mount |
| Current Rating | 20A (AC) |
| Circuit | DPST-NO |
| Bushing Thread | M12 x 1 |
| Actuator Type | Standard Round |
| Actuator Material | Brass, Nickel Plated |
| Actuator Length | 17.50mm |
Components-Store.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all E-Switch series electronic components. We have 24143 pieces of E-Switch ST26ED00 in stock available now. Request a quote from electronics components distributor at Components-Store.com, our sales team will contact you within 24 hours.
